Tuesday, September 28, 2010

He-Man Hunter and He-Man Hawkbill










Two more in my spurt of knife making just up. I actually have a third one I did as well but its needing some adjustment on the contact before it will be ready so I just stuck with the two completed. Once more these are the same pattern with various blade shapes I've come up with to fit into the same handle shape. I tend to like more traditional straight forward designs as opposed to all the fancy smancy curves and grip grooves. To me a straight forward more "Puukko" type handle is more versatile in a multitude of grips making the knife about as easy to use flipped on its side as it is upside down or right side up.

Anyway, this handle appealed to me years ago when I saw a drawing my good friend Dirk Potgieter had done and at first the model I made was similar to the one he did but as things progressed little by little I eventually modified it so much that it is hard to tell its the same general pattern anymore. Hence the He-Man name sake. This one is a very similar knife to the one I used to call my "Ouparator" with some slight improvements to it in how I build it.

The He-Man name comes from the lock which is pretty stout on most of these because all my He Man models come in .095 thickness titanium with very shallow lock cuts to spring the locks or none at all depending on what is ordered. Its a very stout lock and something certainly not for everyone but the trade off is a knife that can be carried without a pocket clip or worry of hyper extending the lock out the wrong way when closing it. It requires a lot of ummmph and a lever to make the bend in this lock so there is no way a thumb is going to change the memory of one once its set believe me. I've got a stout thumb and I can't cause the lock to lose spring memory with my thumb on purpose let alone by accident! :-)

There are other trade offs also. One is it may take a bit more to close one of these locks with no lock cut to spring it easier but the benefit of that is it won't close by accident on you when you have to focus your attention on one to make it close when you want it to. The other is that the lock has so much spring to it that you are not going to be sitting around opening and closing one of these all day like some kind of a knife worry stone nervous habit. I mean you can try but likely it will flat wear your thumb out so its the kind of knife you open when you need it and you use it and put it away.

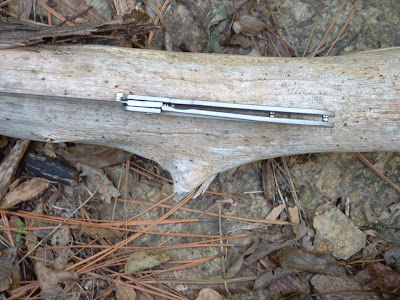

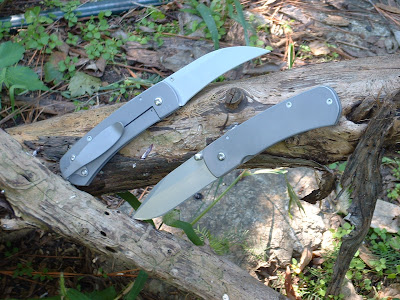

Anyway, these again both weigh close to 3 ounces each. Both are 12C27 blade steel heat treated to 60 Rockwell by Peters Heat Treat Service. They are 4 and 1/4" long closed, with slightly over 3 " blade lengths open. The pics say it all as they both stand on some logs out back together. I did both of these once again in the same .095 thickness titanium slab handles and neither one of these has a lock cut in the lock. The locks are solid just like they come and they are some stout locks. Not for everyone I know but for someone wanting a totally unique lock unlike any you'll fine anywhere else well, you are looking at it.

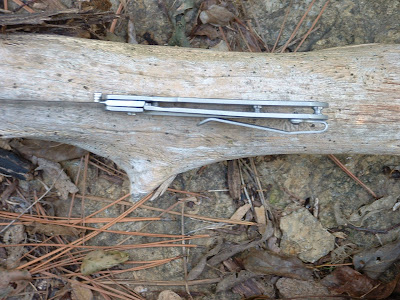

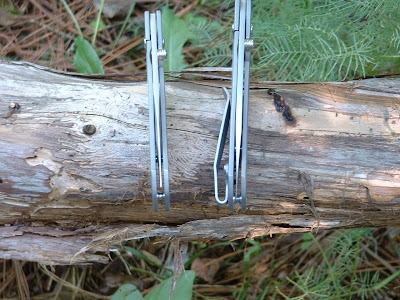

I'm starting to see a pattern here with hunters. It appears that they like carrying deep without pocket clips. You probably noticed that this hunter model, just like the last does not have a clip. The hawkbill however, did get one of my custom made ti low rider clips on it for right hand tip up carry.

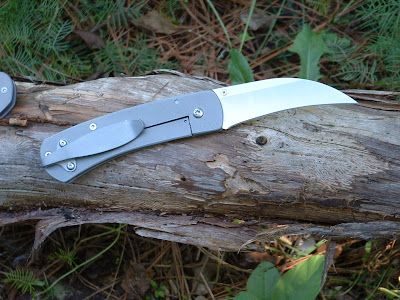

The Hawkbill folder shown here is available yet. $250 Correction: This one is SOLD
Thanks for looking. Been a busy few days for me. I'm taking a break. :-)

STR

3 comments:

Shakur said...

nice....

Jeff Jarrett said...

How can I get a low ride clip for my Kershaw Junkyard Dog? Thanks

Steve A/K/A STR said...

simply contact me at STR@bladeforums.com and that works for pay pal also $40 shipped out thanks
