Khin's Horseman HD

Ok last post of the completed folder upgrade to a slab lock side. Note there are three sets of pictures loaded at different times in this post and three postings even though they are hard to discern. First four pictures are one post. Then we have the one off picture smaller than the others done with my scanner showing the original stop pin in the folder. After that is the last post which is the one that shows the folder before I even took it apart.

In this picture show of the folder before and after you can see the original factory liners pictured along with the original stop pin and the new lock side and sometimes other parts that I add to the folders I work on, parts which I've now replaced with some custom made ones at times which as you have seen before can be spacers to replace the black original one shown in this knife, or pocket clips custom made or even new non locking liners and scales. So, I hope this helps some of those that weren't following what is going on when you see me posting like this showing a lock side of a folding knife you can now get a better idea of what it all adds up to.

You can see here that just as I had hoped it would the folder went together this morning no problem. Now all I have left on this one is to create my custom replacement stop pin to replace the original placed in the slab temporarily to test fire the lock and once thats done I'll take a couple better digitals and ship it home. This folder got a new lock slab of .160 thickness and as you may recall, it weighed in at 4.7 ounces before starting. It now weighs 5.1 ounces on the same digital postal scale I use for weighing packages before mailing them.
I've also activated lock side detent ball on this knife per the request of the owner. A request that comes quite often from New Yorkers.

Some of the non knife nut folks have asked me in email some questions that prompted this before and after of what I am actually doing here. I guess I take it for granted that most folks just know but some say while it looks great they are not exactly following some of the work with no reference to see the folder before I start whatever I do.

So, with that in mind here are some before pictures of the next folder up on my bench. This is yet another Horseman. Four in a row now which is a record even the CQC14 has never matched. The 14 is still the most frequently requested folder that I get asked to convert with upwards of some 20 plus for just that model by itself but I can't recall ever having four back to back orders of the same model before no matter what manufacturer it is.

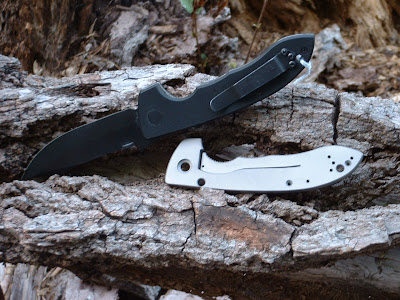

Well, to the point of this post here, I took a few shots of the folder before disassembly to install the lock slab shown here beside it. I made this slab side by side to fit today as I made the one posted just below it. They are basically twins so I left the one together so as to not mix up parts. Tomorrow when I can get back to the shop fresh if I did all my homework correctly this slab should simply screw down and be ready to roll. We'll see. :-)

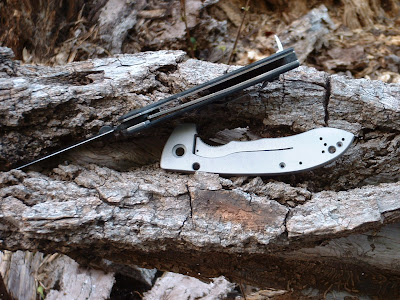

Shown on all sides is the factory folder belonging to Khin. This Horseman here weighs in at 4.7 ounces as shown here. As you may recall most of these are weighing in at 4.9 to 5 ounces once I add the new slab so there is a nominal weight gain but is negligible considering the advantages the slab side brings to the table. Heavier duty, and higher reliability being just two. Lets not forget the 'cool' factor besides that. Maybe these shots here of various angles of the slab I have shown here to fit and the original can give you some better reference to gauge the actual work being done. Thats my hope anyway.

By the way. You may notice the slight depression on the non locking/non pocket clip side near the thumb ramp to access the opening disc on the blade. This is a modification done by the owner of the knife not factory done. Just so you know. I assume he did this to help his thumb out so it hits the thumb disc square instead of skipping over it, since the disc is not centered in the hole area when the blade is closed. I've noted this on other Emerson models and can't say I know why that is the case but my Specwar folders from 1998 and 1999 are both this way also. If you scroll below to the ivory Horseman you can get a good shot of the folder closed on the ivory side to see how the thumb disc sits on the blade with the blade closed. Many makers would put that disc dead center in the half moon recess cut out on that side of the folder for the thumb to access the lock but Emerson moved his slightly off. Knowing Ernest there is probably good reason for this. Perhaps something to do with the disc cactching on pockets instead of the Wave or otherwise interfering with how it is designed to work. I really can't say I know the answer on this one. Personally its never been off enough to bother me much but I know other Emerson owners have mentioned it to me in the past.

Thanks for looking.
